OkTower Self Powered Solar CCTV Surveillance Tower With 4m Hand Crank Telescopic Mast Support 4G Starlink Remote Video

Name: OkTower Self Powered Solar CCTV Surveillance Tower With 4m Hand Crank Telescopic Mast Support 4G Starlink Remote Video
Brand: OKAF
Price: 1 USD

Wholesale OkTower Self Powered Solar CCTV Surveillance Tower With 4m Hand Crank Telescopic Mast Support 4G Starlink Remote Video from china suppliers

Brand Name : OKAF

Model Number : OK-PRO2

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negociate

Payment Terms : T/T, Western Union

Supply Ability : 200 units / month

Delivery Time : 20~25 working days

Packaging Details : Wood box

Product name : OkTower Self Powered Solar CCTV Surveillance Tower With 4m Hand Crank Telescopic Mast Support 4G Starlink Remote Video

Solar Panel : 2*210W total 420W

Solar panel rotation : Automatically rotation follow the sun

Battery capacity : 2400Wh lithium battery

PTZ camera : 2MP 25x optical zoom

4G/WIFI : Built in 4G and WIif

Remote real time video : Support

Telescopic mast : 4m manual lifting telescopic mast

LED lights : 2*50W led lights

Transportation : With forklift and ring for transportation

Contact Now

PRODUCT OVERVIEW

Solar CCTV Tower

OK-PRO2 Solar CCTV light tower combines high-powered LED lighting with 24/7 surveillance. Ideal for remote area, disaster zones, traffic monitoring, crowd control,mining and quarrying operations,remote livestock monitoring, remote parking lots and storage yards and construction sites etc Self power with solar and battery, rapid deployment, and zero infrastructure needed.Low maintenance cost. OKAF Solar cctv light tower is built with high-resolution digital cameras support night vision with led flood lights for night working. Built in 4G, support remote real time video,remoe intercom. The camera tower can deter intruders, burglars, and other unlawful pursuits, improve the security and safety of a region. The integral alarm also notifies in case of suspicious tasks.

OkTower Self Powered Solar CCTV Surveillance Tower With 4m Hand Crank Telescopic Mast Support 4G Starlink Remote Video

Advantages of OKAF Solar cctv tower

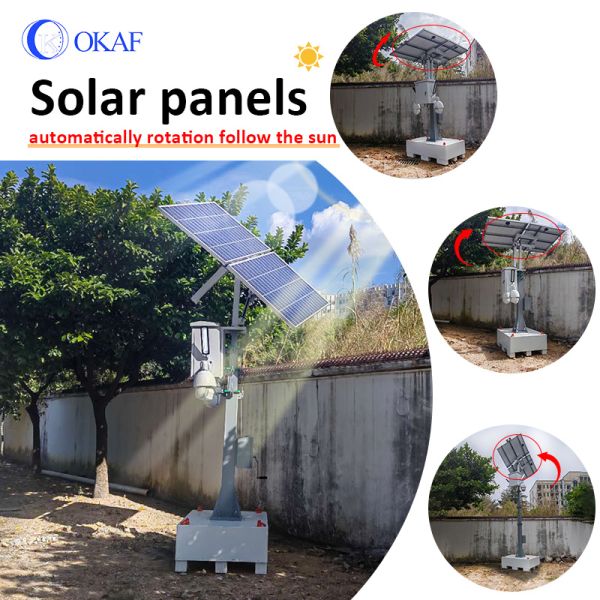

● 2*210W solar Power, total 420W. Solar panel follow the sun automatically rotation.make full used of solar energy, uninterrupted operation, solve the issue no electricity at site.

● Built in maintenance-free deep cycle lithium battery, automatic recharging.

● 4m manual lifting telescopic mast, top payload weight up to 100KG. Wider monitoring range.

● High resolution 1920x1080P, 25x optical zoom PTZ cameras, 50m night vision.

● 4G transmission, remote real time viewing and control. Integration with cloud platform and mobile/desktop app (iOS/Android/Windows), Multi-user access with permissions (Admin / Operator / Viewer).

● With speaker,ability to play live voice messages or pre-recorded warnings automatically during alarms.

● Support intrusion detection, cross-border detection, mobile detection etc

● Integrated LED floodlights with high luminosity,2X50W, total 100W. LED lights brightness and angle are adjustable. Automatic night/day mode switching via light sensor.

● Easy to transport with forklift and lifting ring.

● Extended AI function: face recognition,safety helmet detection, jacket detection, smoking detection etc.

APPLICATIONS

TECHNICAL DATA

CCTV Surveillance system
Cameras	2 HD PTZ cameras
Resolution	1920×1080P
Optical zoom	25x
Pan/Tilt range	Pan: 360°,Tilt: -25°～+90°
Network port	RJ45 10Base-T/100Base-TX PoE(IEEE802.3af)
Audio mode	External active microphone or linear input, linear output
Network protocol	IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP
Dual stream	Support
Intelligent feature	intrusion detection, cross-border detection, mobile detection etc
Video input	4 channels network 1080P, Aviation connector
Video output	1 way Composite Video Output +1 CH VGA output, 1.0Vp-p, 75Ω
Preview function	1 way ,4 screen splicing preview,support manual/ Event trigger full screen display function
Video resolution	Support 1080P,720P,D1,HD1, CIF optional , support up to 4 way 1080P.
Audio input	4 way,Aviation connector
Audio output	1 way
Compression format	G.711, rate 8KB/s
Video storage	Supports large-capacity 2.5-inch hard disk
Communication interface	2-way RS232, expandable credit card machine, fuel sensor, LED advertising screen, etc.
	2 way 485 interface,Expandable PTZ
	2way CAN bus interface
Wireless transmission	4G wireless transmission function, TDD-LTE, FDD-LTE
Remote access	Integration with cloud platform and mobile/desktop app (iOS/Android/Windows), Multi-user access with permissions (Admin / Operator / Viewer).
Speaker	External speaker, ability to play live voice messages or pre-recorded warnings automatically during alarms.
Alarm management	Intrusion detection, line crossing
LED flood lights
Power consumption	2x50W total 100W. Brightness adjustable
Light senor	Automatic night/day mode switching via light sensor
Luminous flux	10000 Lumen
Color temperature	5000~6500K
Lighting color	white light or green light optional
Power supply
Solar panel	2*210W total 420W Monocrystalline silicon solar panel
Solar controller	MPPT Solar controller, 95% efficiency
Solar panel rotation	Automatically follow the sun rotation
Battery type	Lithium battery
Battery capacity	1Pcs DC12V 200Ah, total 2400Wh
Telescopic mast
Mast type	Square manual telescopic mast
Material	Stainless steel
Mast height	Extended height 4m, retracted height 1.4m, 4 sections
Maximum diameter	120x120mm
Minimum diameter	60x60mm
Top payload weight	Maximum 100KG
Mast weight	67KG
Wind speed	19m/s
Tower
Material	Hot - Dip Galvanized (Anti - Rust)
Dimension(In Transit)	12008001793mm
Dimension(On Deployment)	12008004393mm
Weight	200 kg complete device.
Forklift base	Easy to transport with forklift.
Lifting Ring	4x lifting Ring
Wind resistance	Class 8 winds work normally Class 12 winds are not destroyed
Operating temperature	-30℃~+65℃
Protection grade	IP65 waterproof

Below link is a video of solar cctv tower OK-PRO2

https://www.youtube.com/watch?v=vB1K63EXr10
